CNG / BIO Cascade Manufacturing Company in Delhi NCR, India
Natural CNG Fitment Pvt Ltd is one of the top CNG cascade manufacturers in India. We are also a trusted bio cng cascade manufacturer in Delhi NCR. Our range covers 12 sizes from 1000 L to 5500 L in mobile and stationary options. Each cascade is built with Type 1 steel, Type 3 hoop-wrapped, or Type 4 full composite cylinders. Working pressure is 260 kg/cm². All units are PESO approved and meet ISO 15500 and BIS IS 7285 standards. We have tested over 1,50,000 CNG cylinders since 1998. Our clients include Reliance New Energy, JBM Group, Sundaram Finance, RED, Oriana Power Limited, Shivam Autotech and more.
What is a CNG Cascade?
A CNG cascade is a bank of high-pressure cylinders joined together on a steel frame. It stores and moves compressed natural gas (CNG) or compressed biogas (CBG) at high pressure. The cylinders connect through a manifold and work as one large storage unit.
The name "cascade" comes from how gas flows during filling. Gas moves from one pressure group to the next in stages. It flows first from the high-pressure bank. Then the medium-pressure bank. Then the low-pressure bank. This staged method transfers maximum gas from the storage bank to the vehicle or receiving system.
As a CNG gas cascade supplier in India, we build cascades that handle both CNG and bio CNG safely and efficiently. Every unit is made for real-world use at CNG stations, CBG plants, and virtual pipeline projects across India and the worldwide.
Why Do CNG Cascades Matter?
Compressed natural gas is a cleaner and cheaper fuel compared to diesel and petrol. But CNG needs special high-pressure storage to stay compressed and safe. That is the job of a CNG cascade.
Without a reliable cascade, gas stations cannot store enough fuel. CBG plants cannot move compressed biogas to buyers. Virtual pipeline projects cannot reach remote towns. Fleet operators cannot fill their vehicles on time.
A good CNG cascade solves all these problems. It stores gas safely. It moves gas efficiently. It delivers gas at the right pressure every time.
That is why choosing the right CBG cylinder cascades manufacturer matters for your project.
5500 L Mobile CNG Cascade
4000 L Mobile CNG Cascade

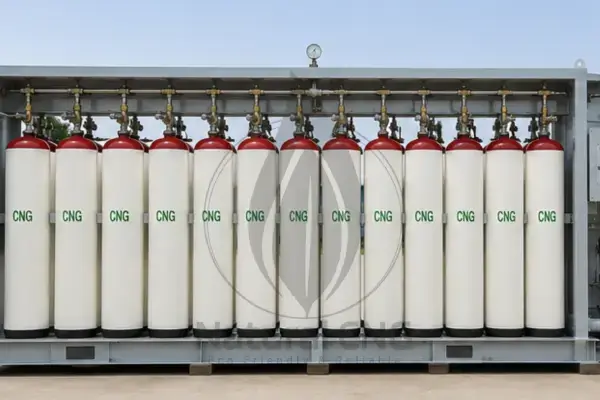

1500 L Stationary CNG Cascade
3500 L Mobile CNG Cascade

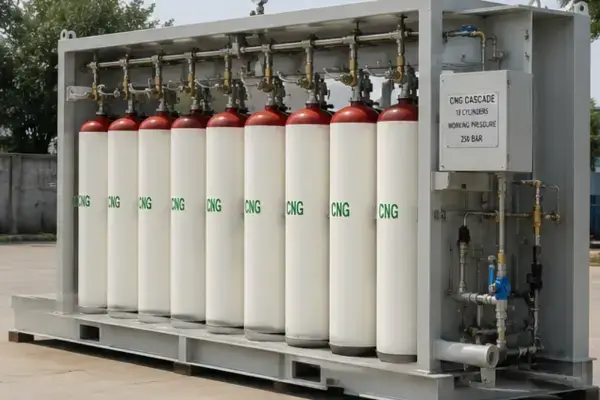

1000 L Stationary CNG Cascade

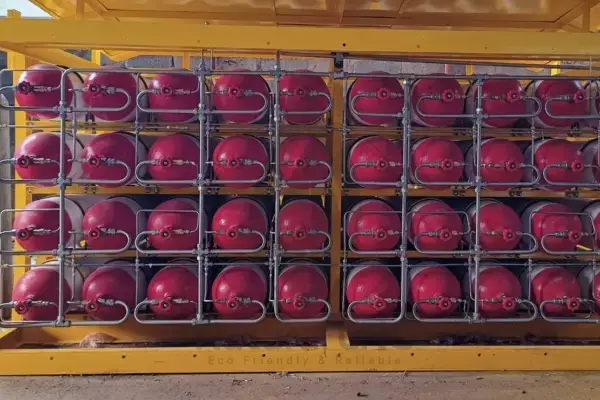

5000 L Mobile CNG Cascade
3000 L Mobile CNG Cascade
2500 L Mobile CNG Cascade

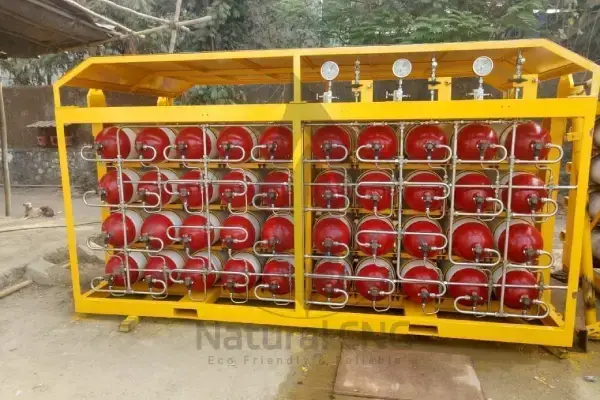

4500 L Mobile CNG Cascade
Our CNG Cascade Range
We manufacture 12 CNG cascade sizes. Every unit runs at 300 bar pressure rating. Standard builds use Type 1 cylinders, Type 3 and Type 4 composite cylinders are available on request.
Mobile CNG Cascades
Mobile cascades sit on truck or trailer chassis. They transport compressed gas from a mother station to a daughter station or end user. As a bio CNG storage cascade supplier in India, we build mobile units for both CNG and CBG transport. Mobile CNG Cascade starts 1000 L to 5000 L storage capacity.
Stationary CNG Cascades
Stationary cascades stay fixed at the site. They store buffer gas at CNG stations, CBG plants, and industrial facilities. They absorb gas during off-peak hours and release it during peak demand. Stationary CNG Cascade starts 1000 L to 1500 L storage capacity.
Cylinder Types We Manufacture in Our Unit -
Most CNG cascade manufacturers in India offer only Type 1 cylinders. We manufacture all three types under one roof.
- Type 1 Cylinders (All-Steel)
- Type 3 Cylinders (Hoop-Wrapped Composite)
- Type 4 Cylinders (Full Composite)
Technical Specifications
| Specification | Detail |
|---|---|
| Working Pressure | 260 kg/cm² (Domestic), 250 bar (Export) |
| Test Pressure | 334 bar |
| Cylinder Diameter | 267 mm |
| Cylinder Length | 1210 mm |
| Cylinder Capacity | 75 L each |
| Cylinders per Cascade | 12 to 60+ (depends on size) |
| Piping | Stainless Steel 316, ASTM A269, Sandvik make |
| Weight Range | 2 to 8.5 tons |
| Compliance | PESO approved, ISO 15500, BIS IS 7285 Part 2:2017, IS 15490:2017 |
Storage Capacity Data
| Capacity | Cylinders | Weight |
|---|---|---|
| 900 to 4500 L | 12 to 60 | 2 to 8.5 tons |
Larger sizes are built to order. Share your capacity needs and we will design a custom cascade.
Mobile Vs Stationary: Which One Do You Need?
Choose a Mobile CNG Cascade if you:
- Move gas from a mother station to a daughter station
- Run a virtual pipeline for towns without gas lines
- Supply bio CNG or CBG from a biogas plant to end users
- Need to transport compressed gas by road
Choose a Stationary CNG Cascade if you:
- Need buffer storage at your CNG station
- Store CBG at a biogas purification plant
- Supply industrial gas from a fixed site
- Want a lower-cost storage-only solution
Not sure which one fits your project? Call us. Our team will help you pick the right type and size.
Vehicle Mounting Options
We supply cascades mounted on three vehicle types:
LCV (Light Commercial Vehicle) for small-scale gas transport within cities and short routes.
MGV (Medium Commercial Vehicle) for higher-volume routes between stations and plants.
Trailer chassis for heavy-duty long-haul transport across states.
Every cascade is fully certified for road use in India.
How CNG Cascades Are Used?
CNG cascades play a key role across India's gas supply chain. Here are the most common uses:
CNG Filling Stations
Every CNG station needs cascade storage. The cascade acts as a buffer between the compressor and the dispenser. It stores gas during off-peak hours and releases it when vehicles line up for filling.
Virtual Pipeline (Mother to Daughter Station)
In areas without gas pipelines, mobile cascades carry compressed gas by road. A mother station fills the mobile cascade. A truck carries it to the daughter station. The daughter station then fills vehicles from the cascade. This is called a virtual pipeline.
CBG and Bio CNG Plants
Biogas plants produce compressed biogas (CBG) after purification. This CBG needs cascade storage for transport to gas stations or industrial buyers. As a bio CNG storage cascade supplier in India, we build cascades that handle CBG safely.
Industrial Gas Supply
Factories and industrial units use CNG for heating, furnaces, and power. Stationary cascades store the gas on-site and feed it to the production line as needed.
City Gas Distribution (CGD)
CGD companies use cascades at distribution points across cities. Our cascades support both storage and quick dispensing for CGD networks.
Fleet Fuelling Depots
Transport and logistics companies set up captive filling points for their CNG vehicle fleets. Our cascades store the gas. Our LCV fill posts dispense it.
How to Choose the Right BIO CNG Cascade Manufacturer in Delhi NCR?
Not all BIO CNG cascade manufacturers in India offer the same quality. Here is what to look for before you buy:
- Delhi NCR-Based Head Office and Manufacturing Unit
- PESO Approval
- Cylinder Type Options
- Testing Track Record
- Real Client References
- BIS and ISO Standards
- Material Quality
- After-Sales Support
