CNG Gas Pipeline Installation Services in Delhi NCR, India
Natural CNG Fitment Centre provides CNG pipeline installation in India for industrial, commercial, and gas distribution projects. We handle the full scope: design support, material supply, high-pressure piping, fittings, pressure regulation, safety systems, and testing. Our team also provides bio CNG pipeline installation in India for CBG plants that need piping between the purification unit, compressor, cascade storage, and dispensing point. Our founder has worked in the CNG industry since 1998. We hold PESO approval and follow ISO 15500 and BIS standards.
What is CNG Pipeline Installation?
A CNG pipeline is the high-pressure piping system that moves compressed natural gas or bio CNG from one point to another within a facility. It connects the gas source to the compression unit, the compressor to the cascade storage, and the storage to the dispensing point.
CNG pipelines operate at much higher pressures than regular gas lines. A typical CNG pipeline carries gas at 250 bar or more. This demands special materials, proper welding, precise fitting, and strict safety compliance. One weak joint or the wrong material grade can cause a dangerous leak or failure.
That is why CNG pipeline installation is not a general plumbing job. It needs experience with high-pressure gas systems, knowledge of PESO regulations, and the right materials for every section of the line.
As a CNG pipeline installation company in Delhi NCR, we bring over 25 years of CNG industry experience to every project.
How CNG Pipeline Installation Works?
Our CNG pipeline installation service in India follows a structured process from planning to handover.
Step 1: Site Survey and Assessment
Our team visits your site and maps the piping route. We check distances between the gas source, compressor, cascade storage, and dispensing points. We note any obstacles, elevation changes, and safety zones. This survey drives the material list and installation plan.
Step 2: Design and Material Selection
We select the right pipe grade, diameter, wall thickness, and fittings for your operating pressure and gas volume. For CNG and bio CNG pipelines, we use Stainless Steel 316 piping (ASTM A269 grade) and Sandvik-make tubing for critical sections. Every material choice follows PESO and BIS standards.
Step 3: Piping Fabrication and Assembly
Our team cuts, bends, and welds the pipes on-site or in our workshop depending on the project. All welds follow approved procedures. High-pressure joints get extra attention because they carry the most risk.
Step 4: Fitting and Connection
We install pressure regulators, isolation valves, safety shut-off valves, flexible hoses, and metering equipment at the right points along the pipeline. Each fitting is rated for the full working pressure of the system.
Step 5: Pressure Testing
Before gas flows through the pipeline, we pressure test the entire system. The test pressure is higher than the working pressure to check for leaks and weak points. Only after a successful test does the pipeline go live.
Step 6: Commissioning and Handover
We commission the pipeline, verify all safety systems, and hand over the installation to your team with proper documentation. We also provide guidance on maintenance and inspection schedules.
Types of CNG Pipeline Installation We Handle
CNG Station Internal Piping

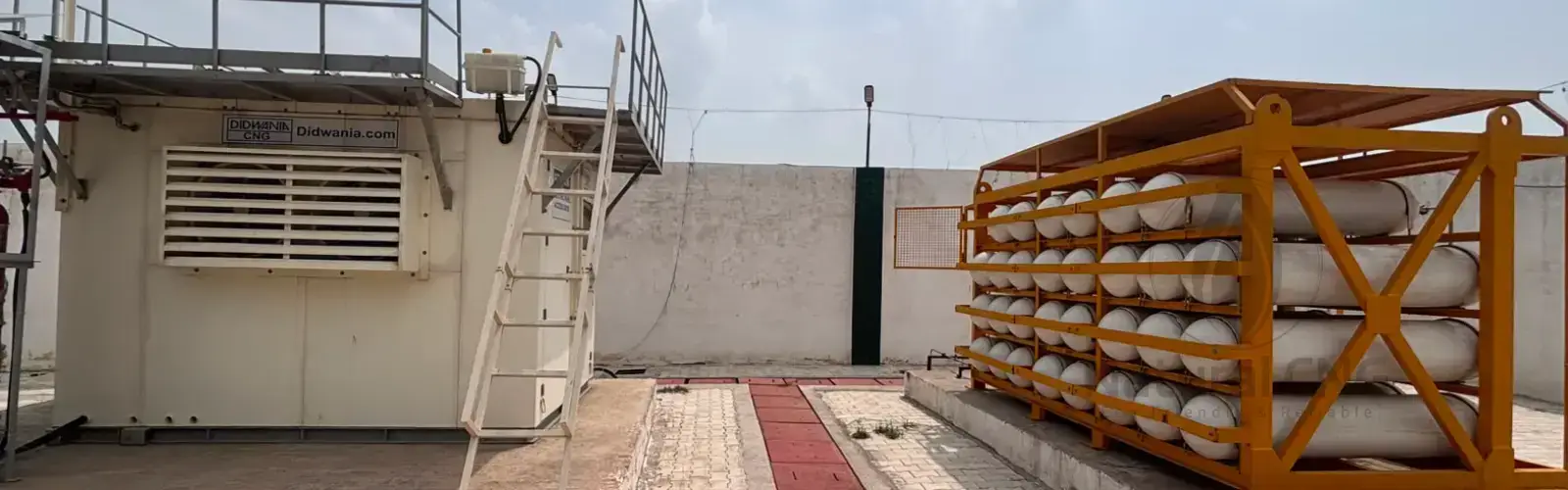

Every CNG station needs internal piping that connects the compressor to the cascade banks and the cascades to the dispensers. We install high-pressure lines for both mother stations and daughter booster stations. Our piping handles pressures up to 300 bar and integrates with the cascade storage and dispensing equipment we supply.
Bio CNG Plant Piping
A Bio CNG plant has multiple piping stages. Raw biogas flows from the digester to the purification plant. Purified gas moves from the purification unit to the compressor. Compressed gas feeds into CNG cascades for storage or transport. Each stage has different pressure and material requirements. As a bio CNG pipeline installation provider in India, we handle the full piping chain from digester outlet to cascade inlet.
Industrial Gas Supply Lines
Factories and commercial units use CNG for boilers, furnaces, dryers, and kitchens. The gas supply line runs from cascade storage or a pressure reduction station to the point of use inside the facility. We install these internal distribution lines with proper pressure regulation and safety valves at every branch.
City Gas Distribution (CGD) Piping
CGD companies need pipeline networks across a city to deliver gas to commercial and residential customers. We support CGD operators with pipeline installation at compression points, distribution hubs, and customer connection points.
Virtual Pipeline Connection Points
In virtual pipeline projects, mobile cascades deliver gas to daughter stations. The daughter station needs piping to transfer gas from the mobile cascade to the stationary storage and then to the dispensers. We install these transfer and dispensing lines with quick-connect fittings for fast cascade swap.
Key Components of a CNG Pipeline System
High-Pressure Seamless Steel Piping: The backbone of the system. We use Stainless Steel 316 (ASTM A269) and Sandvik-make tubing for maximum corrosion resistance and pressure tolerance.
Pressure Regulators: These devices step down gas pressure from high-pressure storage to the level needed at the point of use. Each regulator is rated for the full upstream pressure.
Pressure Reduction Stations (PRS): For large facilities, a PRS reduces pipeline pressure in stages. This protects downstream equipment and ensures safe, steady gas flow.
Isolation Valves: These shut off gas flow to specific sections of the pipeline during maintenance or emergencies. We install isolation valves at every branch and connection point.
Safety Shut-Off Valves: Automatic valves that close when pressure exceeds safe limits or when a leak is detected. These are mandatory under PESO regulations.
Flexible Hoses: Used at connection points where rigid piping is not practical. All hoses are rated for high-pressure CNG service.
Metering Equipment: Flow meters and pressure gauges track gas volume and pressure at key points. Accurate metering supports billing, inventory, and safety monitoring.
Supports, Hangers, and Mounting Systems: Proper pipe supports prevent vibration, sagging, and stress on joints. We design the support system for each installation based on pipe weight, pressure, and routing.
Applications of CNG Pipeline Installation
CNG Filling Stations: Internal piping for compressor-to-cascade and cascade-to-dispenser connections at mother and daughter stations.
Bio CNG and CBG Plants: Full piping from digester outlet through purification, compression, and cascade storage. This is one of the fastest growing segments for CNG pipeline installation in India.
Industrial Facilities: Gas supply lines for factories using CNG in boilers, furnaces, kilns, and process heating.
City Gas Distribution Networks: Pipeline installation at compression, distribution, and metering points across CGD networks.
Fleet Fuelling Depots: Piping between cascade storage and filling posts at captive fleet fuelling facilities.
Virtual Pipeline Stations: Transfer piping at daughter stations where mobile cascades connect and deliver gas.
Why Choose Natural CNG Fitment Pvt. Ltd. for CNG Pipeline Installation Service?
- CNG Industry Experience Since 1998
- 1,50,000+ CNG Cylinders Tested
- PESO Approved and ISO 15500 Compliant
- Premium Materials Only
- Complete Gas Infrastructure Under One Roof
- Delhi NCR Based, Pan-India Service
Trusted by India's Top Companies
As a leading CNG pipeline installation company in Delhi NCR, we serve:
- Reliance New Energy
- JBM Group
- Sundaram Finance
- Shivam Autotech Ltd
- Oriana Power Limited (TrueRE)
- Confidence Group
- Bonn Group of Industries
- SVE, GPS, KLSR Infratech Ltd
CNG Pipeline Installation and Our Other Products: How They Connect
A CNG pipeline does not work alone. It connects the other equipment in your gas system.
Your CNG gas plant compresses the gas. Our pipeline carries it to the CNG cascade storage banks. From the cascades, piping feeds gas to the CNG station dispensers. If your project starts with a biogas plant, our piping connects the digester to the biogas purification plant and then onward to the compressor and cascades.
We supply every piece of this chain. When one team handles the equipment and the piping, the whole system works together from day one. No finger-pointing between vendors. No mismatched fittings. No delays.
